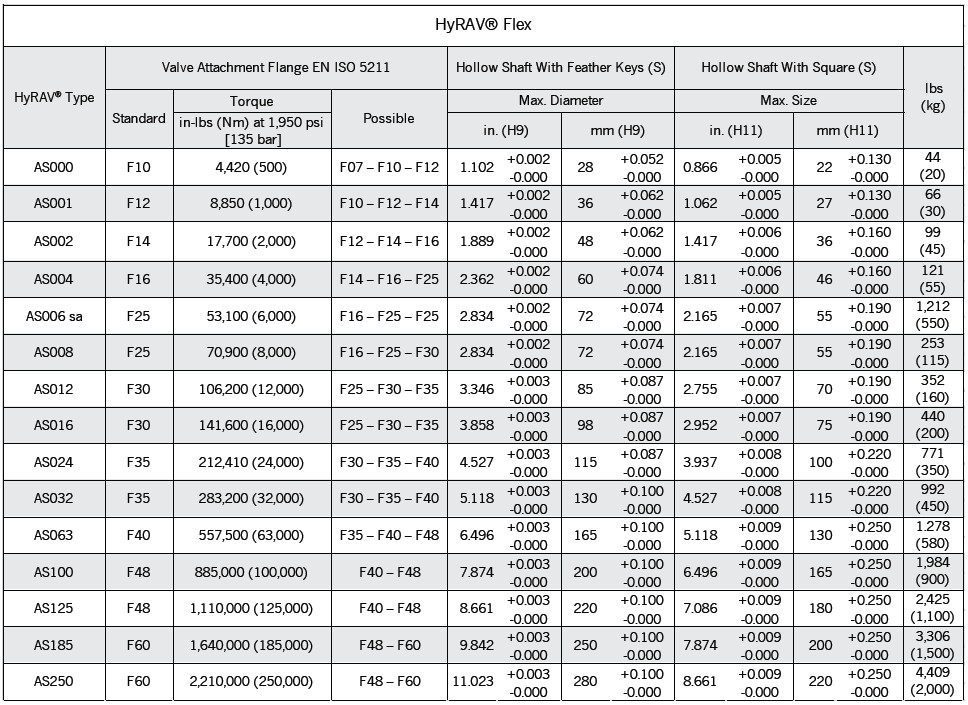

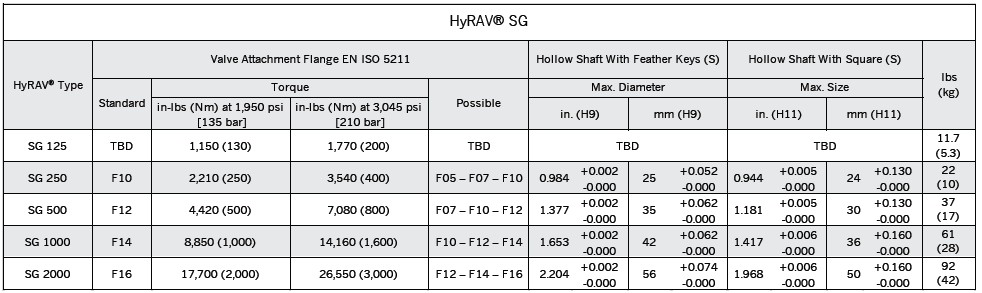

HyRAV SG Series & Flex Series of hydraulic valve actuators

The HyRAV SG and Flex series of rotary actuators form a complete series of dual-acting or spring-return rotary units which work according to the helical gear principle.

The compact and concentric fitting on the valve has proven to be effective in practice and the unit is both space-saving and reliable. This series can be deployed in the most difficult conditions, from heavy vibrations to adverse ambient conditions, and offer a powerful and safe solution for valve control.

Due to the spacious, hollow shaft design, and customizable flanges, the series can be adapted to each valve type.

DOWNLOAD HyRAV SG Series | Flex Series BROCHURE

ADVANTAGES:

• 15 actuator sizes
• Torques up to 2,210,000 in-lbs (250,000 Nm) at 3,045 psi (210 bar)
• Through the concentric design, no radial forces are transmitted to the valve
• Optimum cushioning protects the valve and actuator
• Easy installation and adjustment to each valve
• Maintenance free — no lubrication required
• Suitable for on/off, control, and fail-safe operation
• High repeat accuracy and very simple control of the flow rates
• Very fast rotation speed (i.e., 90° in 0.2 sec)
• Robust against extreme environmental conditions
• Compact size with high torque output
• Durable against vibrations
• Designed to operate at 3,045 psi (210 bar) which provides more torque in a smaller actuator compared
  to actuators operating at 1,950 psi (135 bar)

We stock of HyRAV SG and Flex Series hydraulic actuators at our Houston, TX warehouse with back up supply being stocked at IC-Fluid Power, our distribution partner’s warehouse in Ohio.

ValvACT is the only U.S. distributor of the HyRAV Series Hydraulic Valve Actuator.

ValvACT is the sole North American agent and distributor for Pleiger Maschinenbau-GmBH.

CONTACT US for more information.
